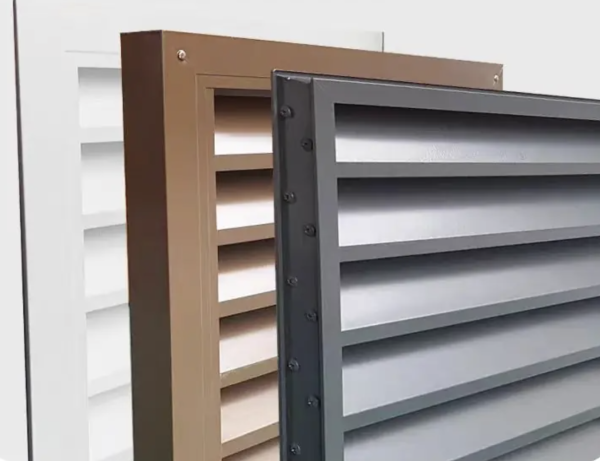

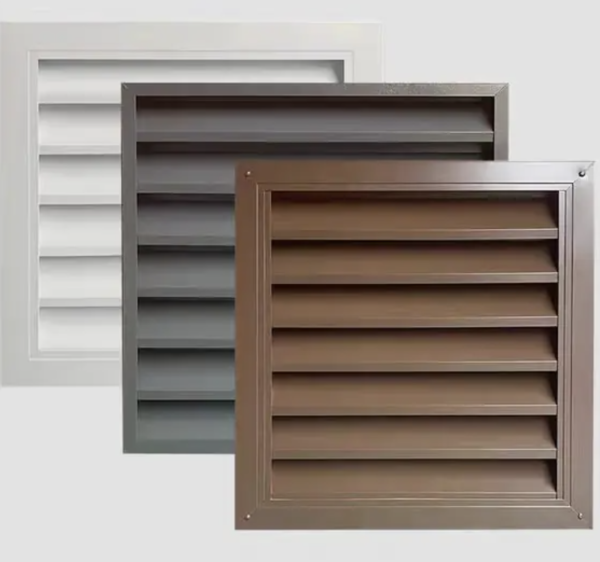

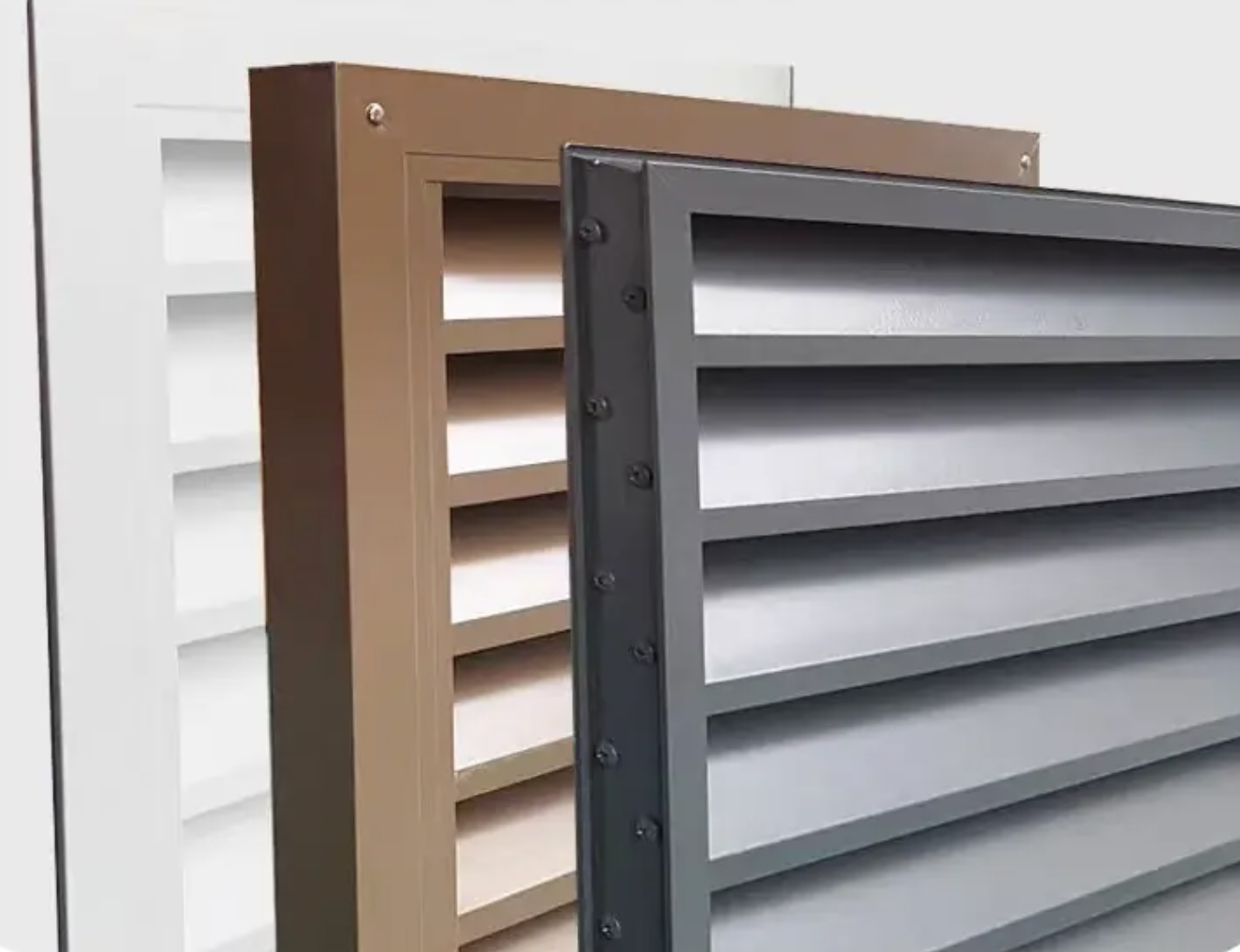

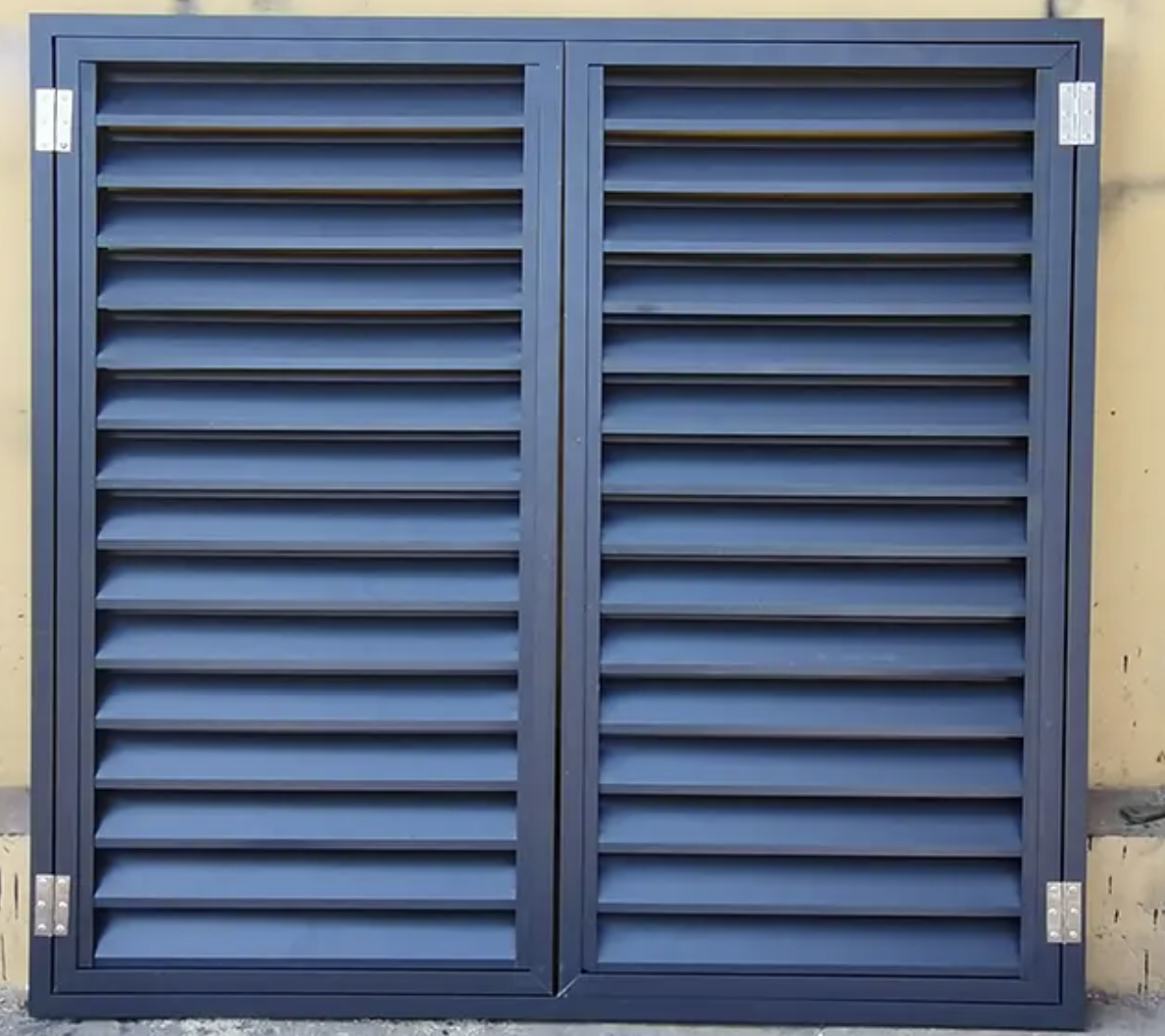

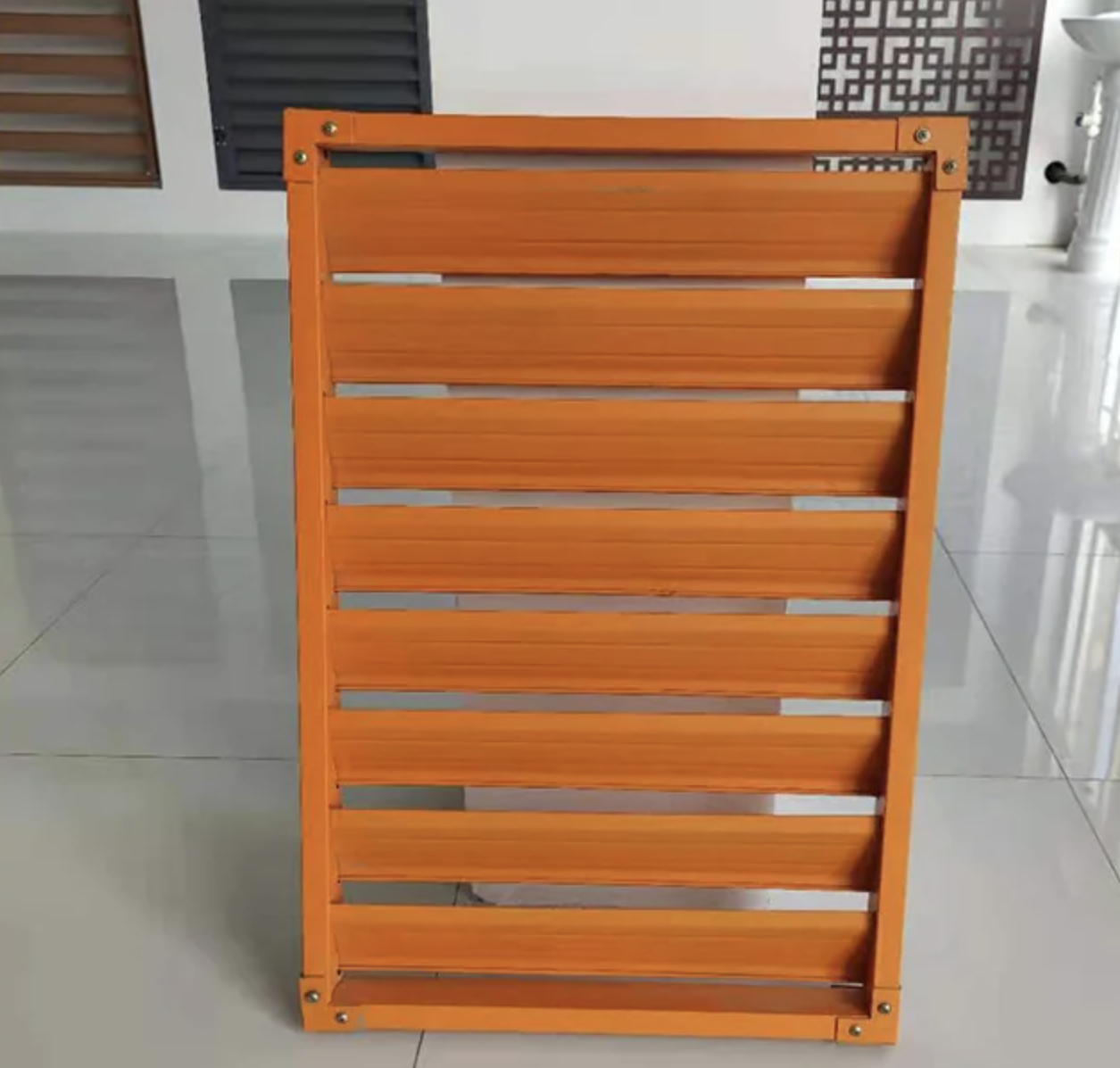

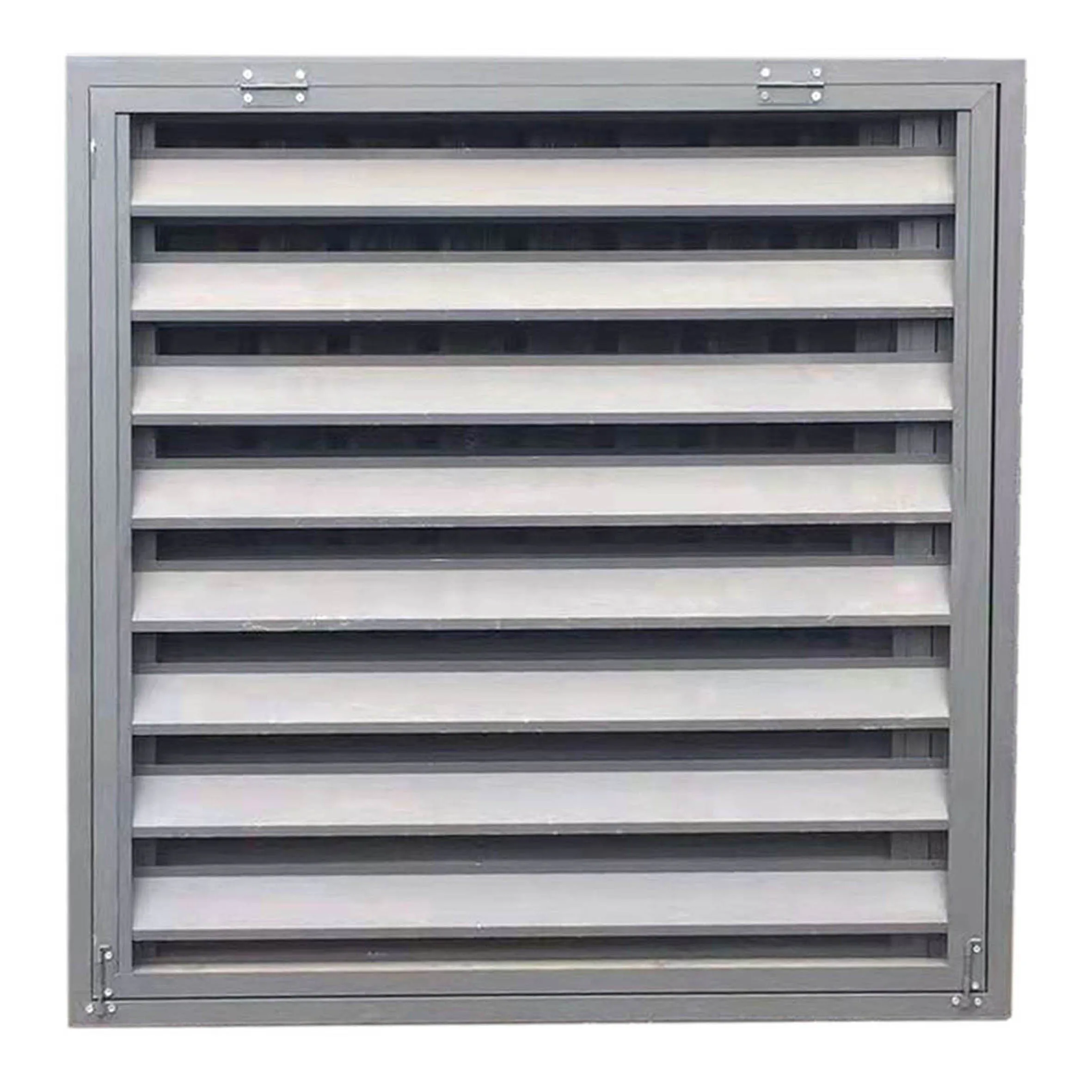

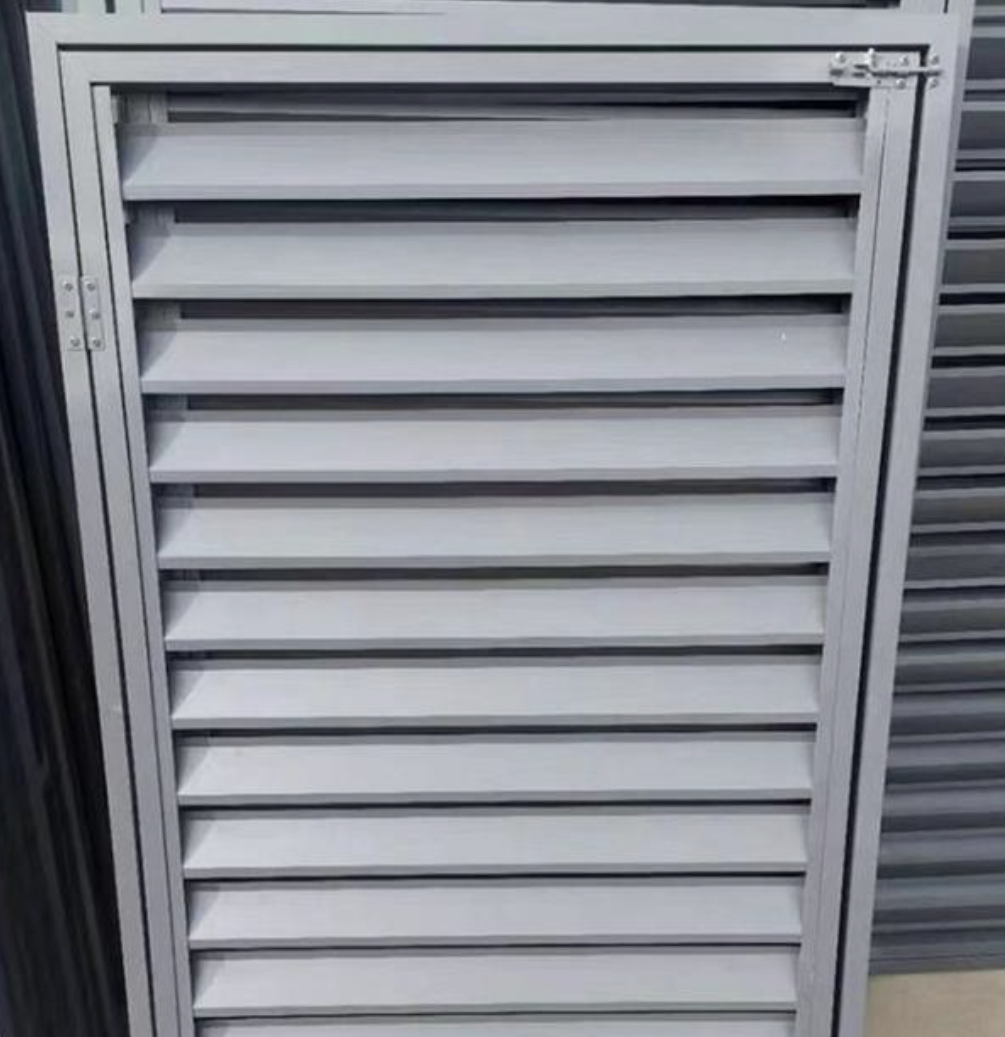

Aluminium Louver Extruded Profiles

Item Type Aluminium louver
Type of Louvers we provided Welded aluminum louvers, fixed aluminum louvers, AC aluminum louvers
Materials Aluminum alloy 6061-T6 or 6063-T5

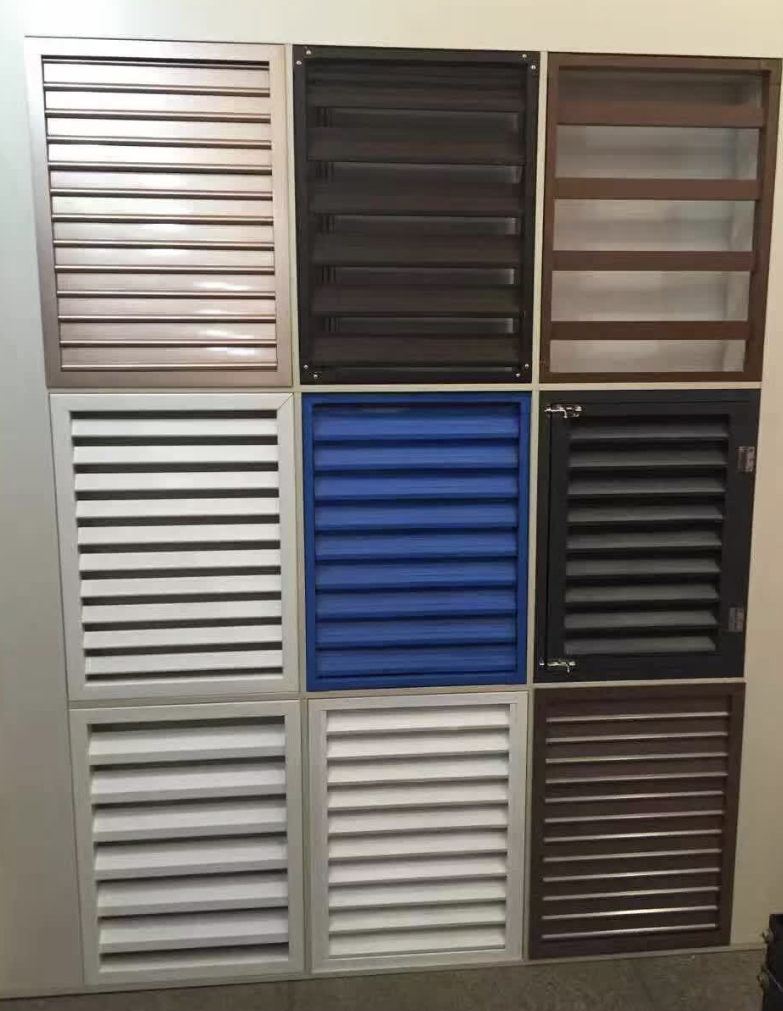

Color Silver, champagne, Bronze, Golden, Black, White, Gray, Aluminum mill finish, Matt Black or Matt Gray,  Sand coating or Customized(photo display will perfect)
Fabrication Louvers design, Aluminum Extruding, Cutting, Welding, Assembling, CNC machining
Shape Customized Please communicate with our personnel about the shape of the aluminium louvers you want to manufacture.
Quality Control ISO 9001
Surface treatment Anodizing, Mill finish, Electroplating, Polishing, Powder coating
Delivery time& Lead time 21-30 days after the sample is confirmed & collected deposit
Minimum Order Quantity Please contact our team

Aluminum louvers are designed for outdoor environments, offering both sun shading and architectural decoration. They are the preferred solution for energy efficiency, environmental protection, and enhancing the aesthetic appeal of modern architecture.

The Main Features of Aluminum Louvers

Durability

Our aluminum louvers are built to last, corrosion and oxidation are no match for them. Made from premium aluminum they wear well. Expect a solution that looks and works great for years to come.

Ventilation

Control the flow of light and air with our blade design. This lets you control the atmosphere inside and air quality. Open up to a soft breeze or flood with natural light, the choice is yours with our louvers.

Customization

Choose from a variety of colors and finishes to match your design. Our aluminum louvers profiles can be any style, they fit with your architectural theme. They add to your building’s character and do their job.

Energy Efficiency

Choose our aluminum louvers and see the difference in your bills. Properly placed louvers deflect the sun in summer and welcome the warmth in winter. This saves energy and is an eco-friendly building.

Structure and Components

Aluminum louvers deliver both beauty and functionality. Review the structure, composed of meticulously selected parts, crafted to ensure optimal functionality and durability:

Aluminum Alloy Blades (Louvers Blades) Material

6063 T5 aluminum alloy, anodized, spray painted or electroplated, anti-corrosion and anti-oxidation.

  • Specifications: Blade width is 50mm to 150mm, thickness is 0.8mm to 2.0mm. Customization is available upon project requirement.
  • Process: We extrude aluminum profiles for the blades, then apply CNC machining for screw holes or weld them directly to form aluminum louvers.
  • Surface Treatment: We coat the blades with electrostatic or fluorocarbon spray painting, providing durability against harsh environmental conditions.

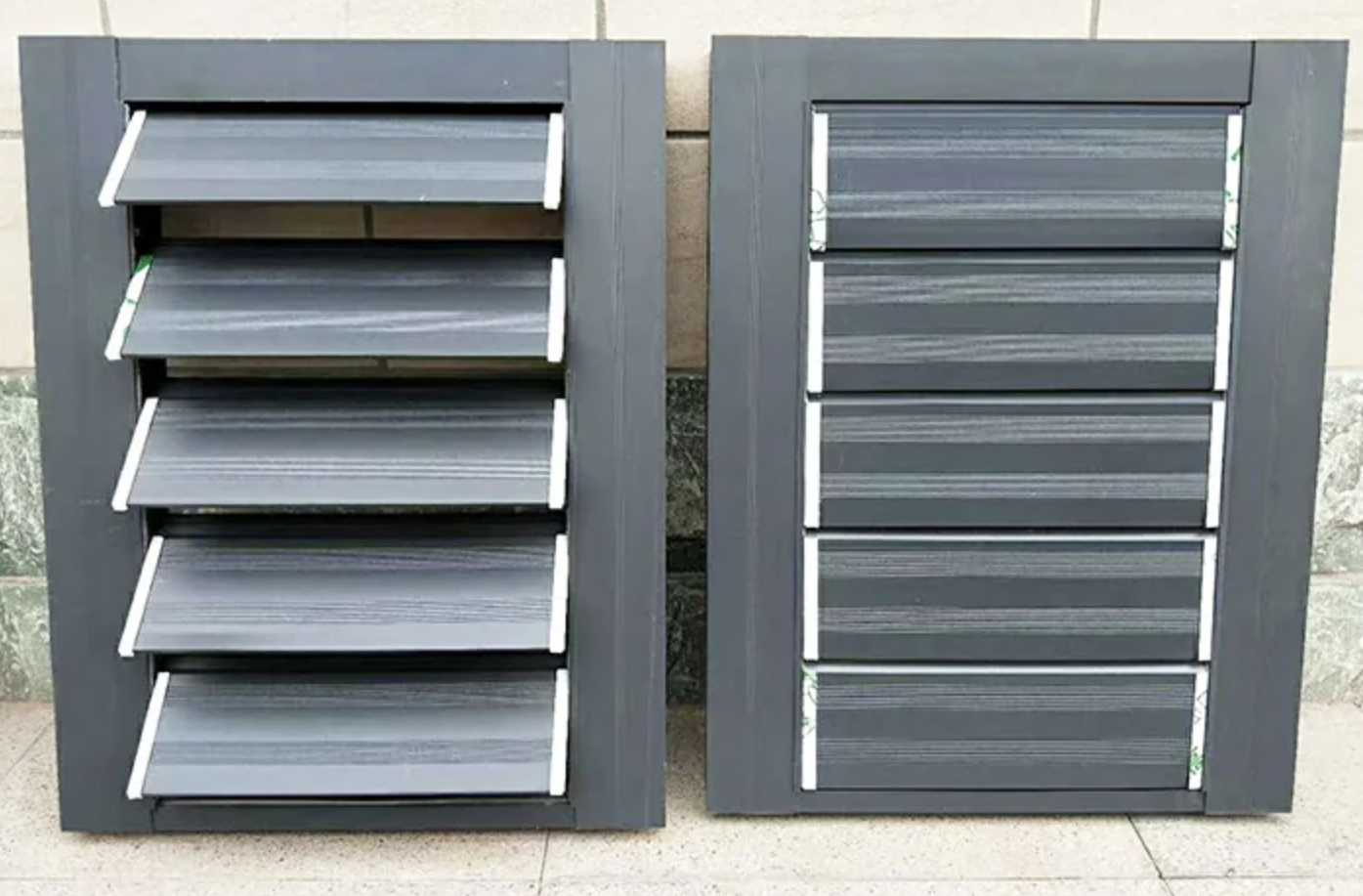

  • Features: Configure the blades as fixed or adjustable to control light and ventilation, achieving effective shading and rain protection.

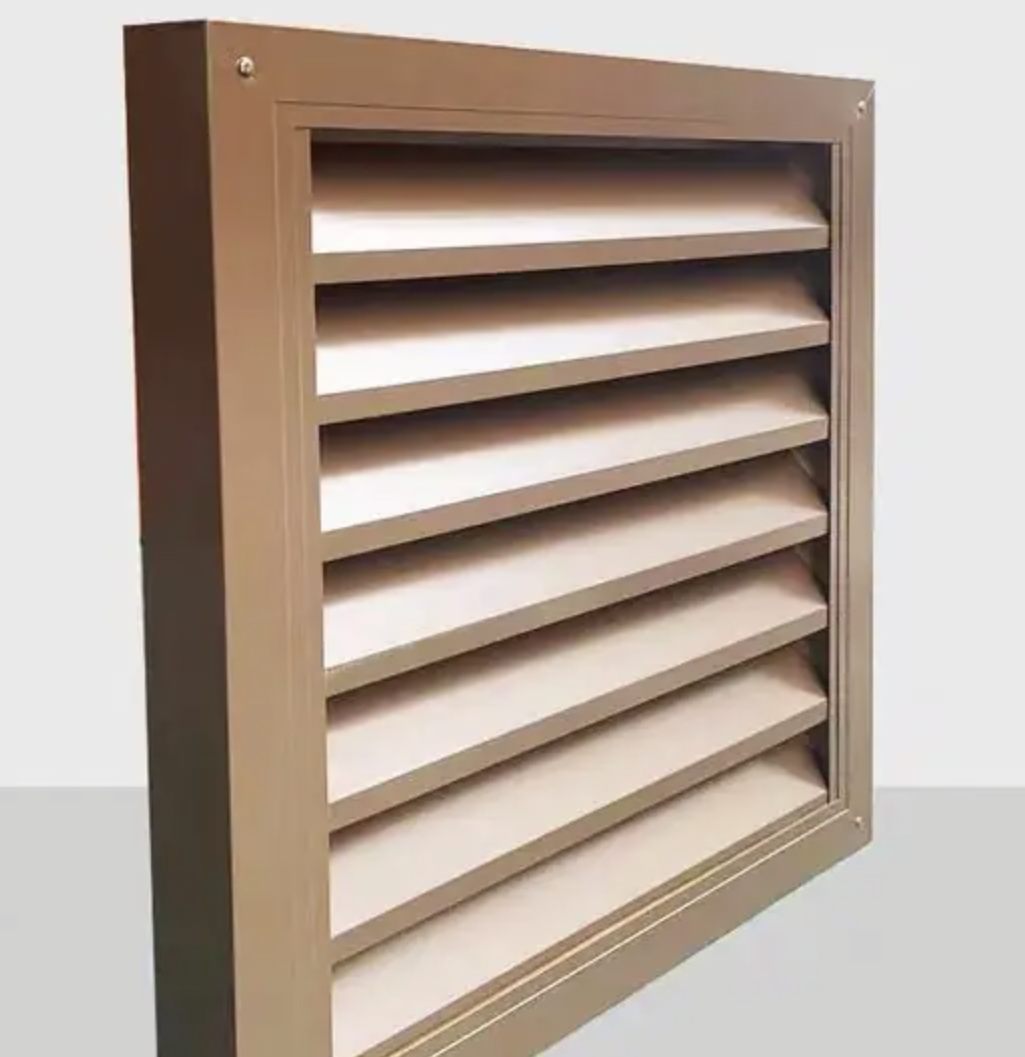

Frame Structure (Aluminum Frame Structure) Material

We construct the frame using a robust aluminum alloy profile, extruded for strength and durability.

  • Specifications: Frame thickness ranges between 1.2mm to 2.5mm, with custom sizing according to project window openings.
  • Processing Technology: We ensure the frame’s longevity through surface treatments like electrostatic and fluorocarbon spray painting, enhancing its capacity to resist weathering and corrosion.

Support and Connection Components Material

High-strength aluminum alloy or stainless steel to ensure the stability and safety of the louvers.

  • Function: Connectors are designed for hidden installation, to make the overall appearance visually appealing and to ensure smooth opening and closing of the aluminum blades.

Aluminum Louvers Applications

Aluminum louvers offer both aesthetic appeal and functional benefits across various building types. Below are the key applications:

Residential Windows and Balconies

Aluminum louvers provide effective shading for residential windows and balconies. They reduce glare and heat from direct sunlight, making interiors more comfortable and private. Adjustable slats allow control over the light entering the space and maintain a view of the outside without compromising privacy.

Facade Design in Commercial Buildings

In commercial buildings, aluminum louvers enhance facade design with their sleek appearance. They control light and airflow, reducing the building’s internal temperature and adding a modern look to the exterior.

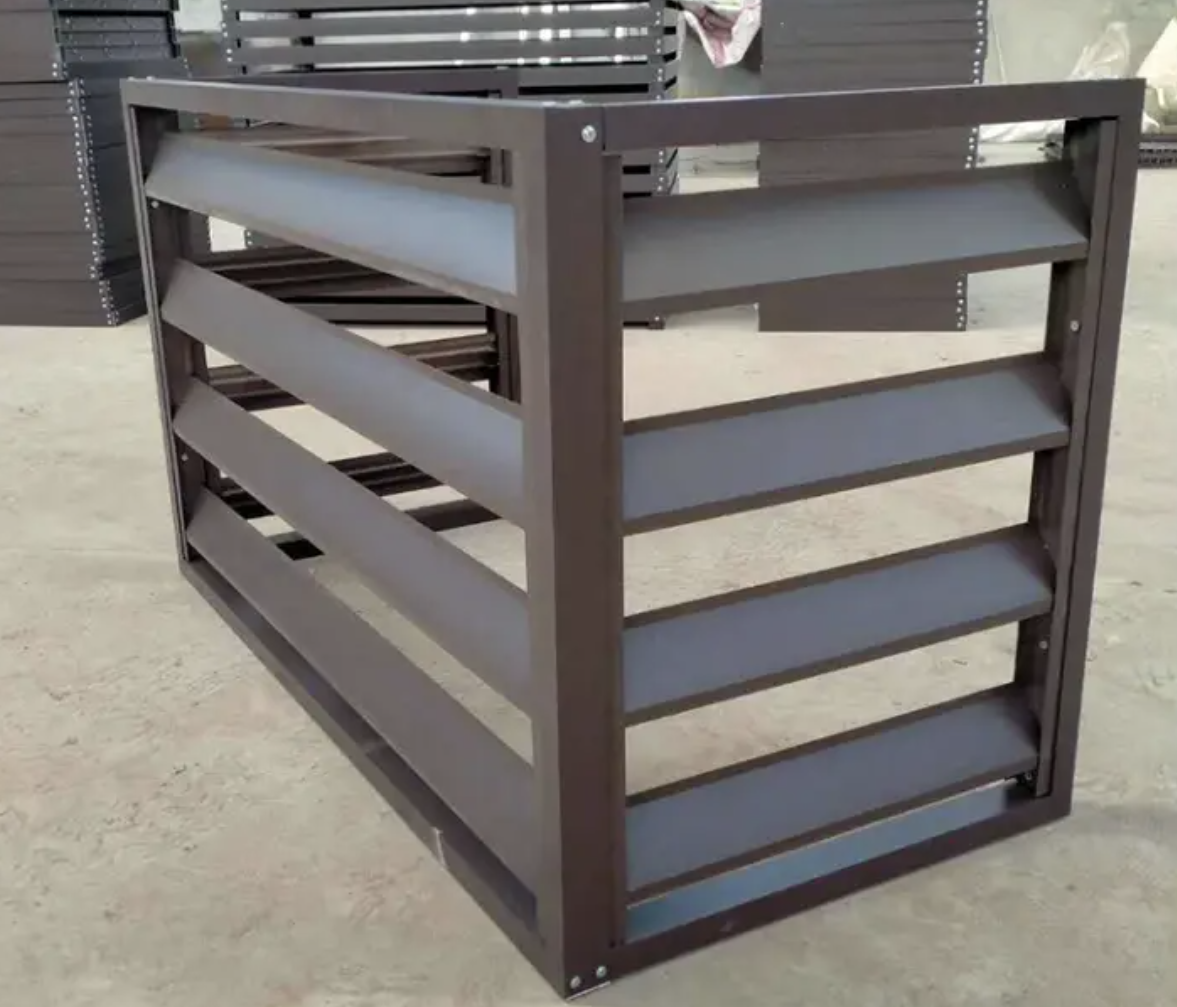

Protection for External Air Conditioning Units in Industrial Buildings

In industrial settings like factories and warehouses, aluminum louvers shield external air conditioning units from debris and elements. This protection prolongs the lifespan and efficiency of HVAC systems.

Public Buildings (Schools, Hospitals, Libraries)

Aluminum louvers on the exterior walls of public buildings such as schools, hospitals, and libraries provide necessary ventilation and sun protection. They maintain a comfortable internal climate by allowing fresh air to circulate while minimizing heat ingress, creating optimal environments for learning, healing, and other activities.

High-Rise Building AC Unit Protection

High-rise buildings, exposed to strong winds and weather conditions, benefit from aluminum louvers protecting external air conditioning units. The durability and resilience of aluminum louvers ensure continued performance and protection against harsh elements.

The Standard Sizes of Aluminum Louvers

Dimension Type Size (Feet/inch) Size (mm)
Aluminium Louvers Height 3′ – 12′ 900 mm – 3600 mm
Aluminium Louvers Width 2′ – 10′ 600 mm – 3000 mm
Louvers Frame 4″ – 6‘ 100 mm – 1800mm
Aluminium Blade Length 4′ – 10′ 1200 mm – 3000 mm
Aluminium Blade Width 1.5″ – 8″ 32 mm – 203 mm
Aluminum Blade Spacing 1″ – 6″ Aluminum Blade Spacing



aluminium Louver
